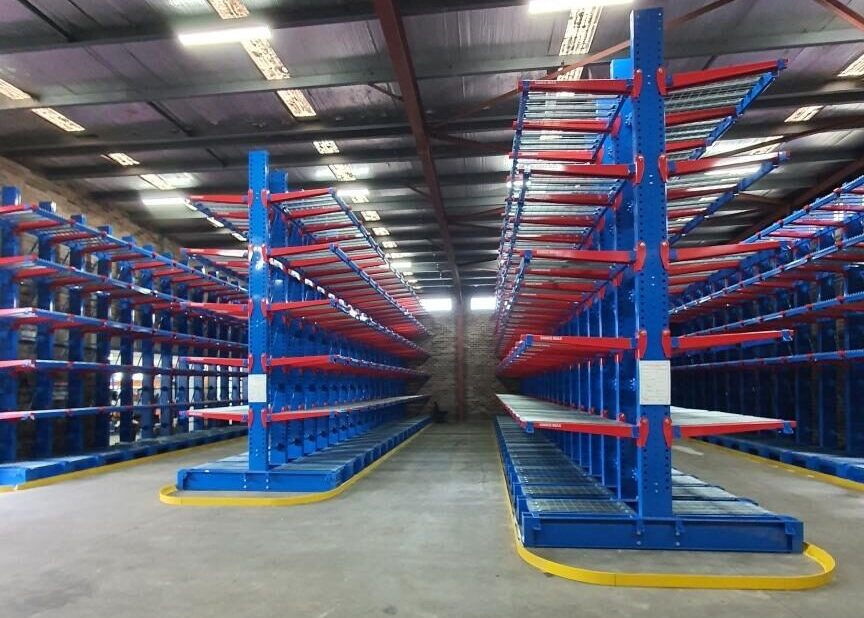

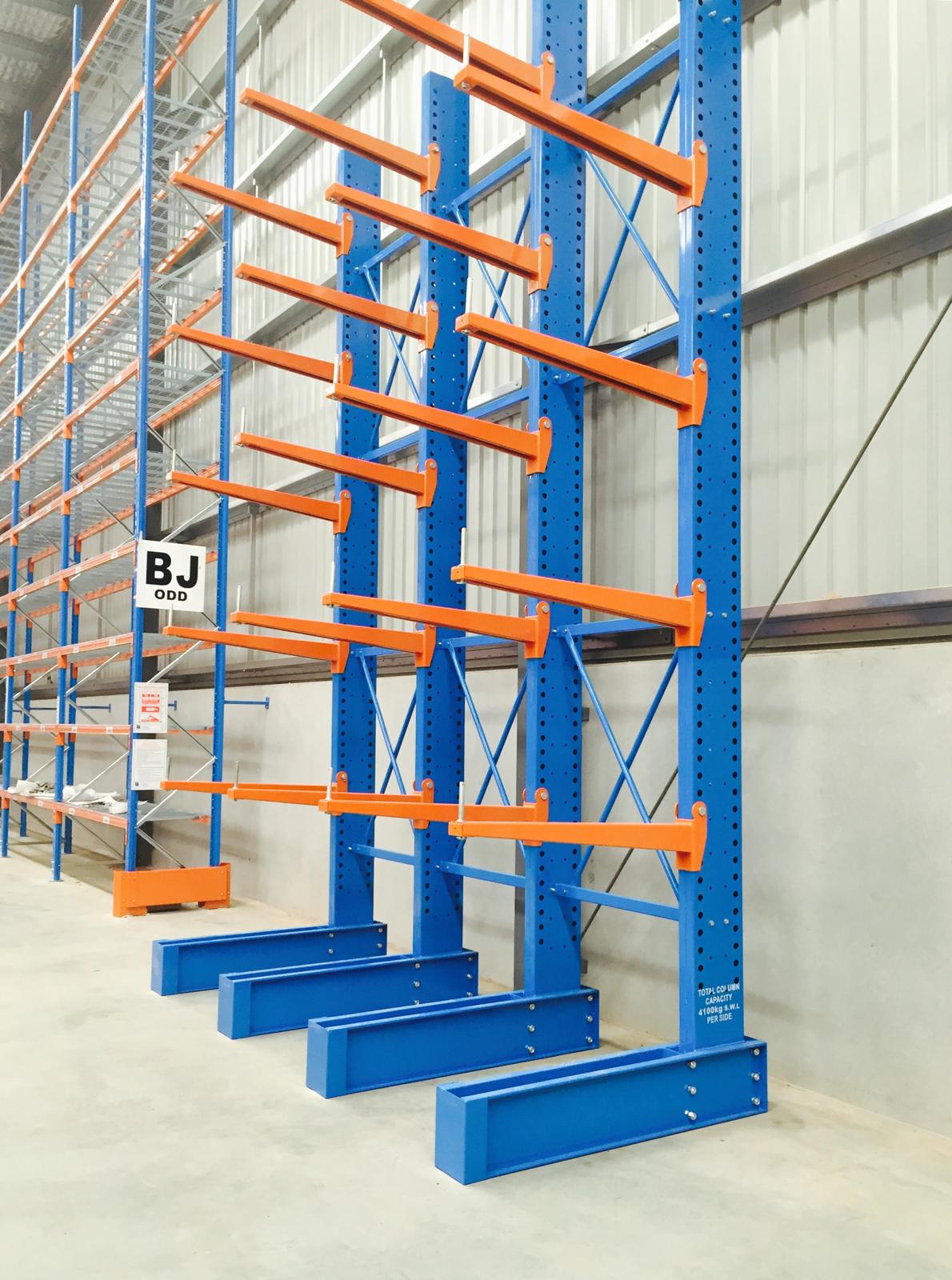

HD Cantilever Racking
Ideal for medium to heavy duty construction materials storage, such as timber packs, steel beams and gyprock products.
We keep the following size specifications of HD Cantilever Racking in stock.
Components List |
Profile |
Capacity |
Finish |
| Columns | H4877*P305mm H5791*P305mm |
4400KG / Side 4000KG / Side |
PC Blue PC Blue |
| Single Side Base | L1589*H305mm L1889*H305mm |
Incl. Hardware | PC Blue PC Blue |
| Double Side Base | L2750*H305mm | Incl. Hardware | PC Blue |
| Arm with Lock Pin | L1200*H120mm L1500*H130mm |
1000KG UDL 1000KG UDL |
PC Red PC Red |
| C/C Bracing Sets | P – P 1200mm P – P 1500mm |
Incl. Hardware | PC Blue PC Blue |
For outside yard area storage, we also carry HD Cantilever Racking in Hot Dip Galvanised (HDG) option as well.
To carry heavier loads and achieve more load capacity, please contact us for more details and we will assist you with your enquiry.
