Description

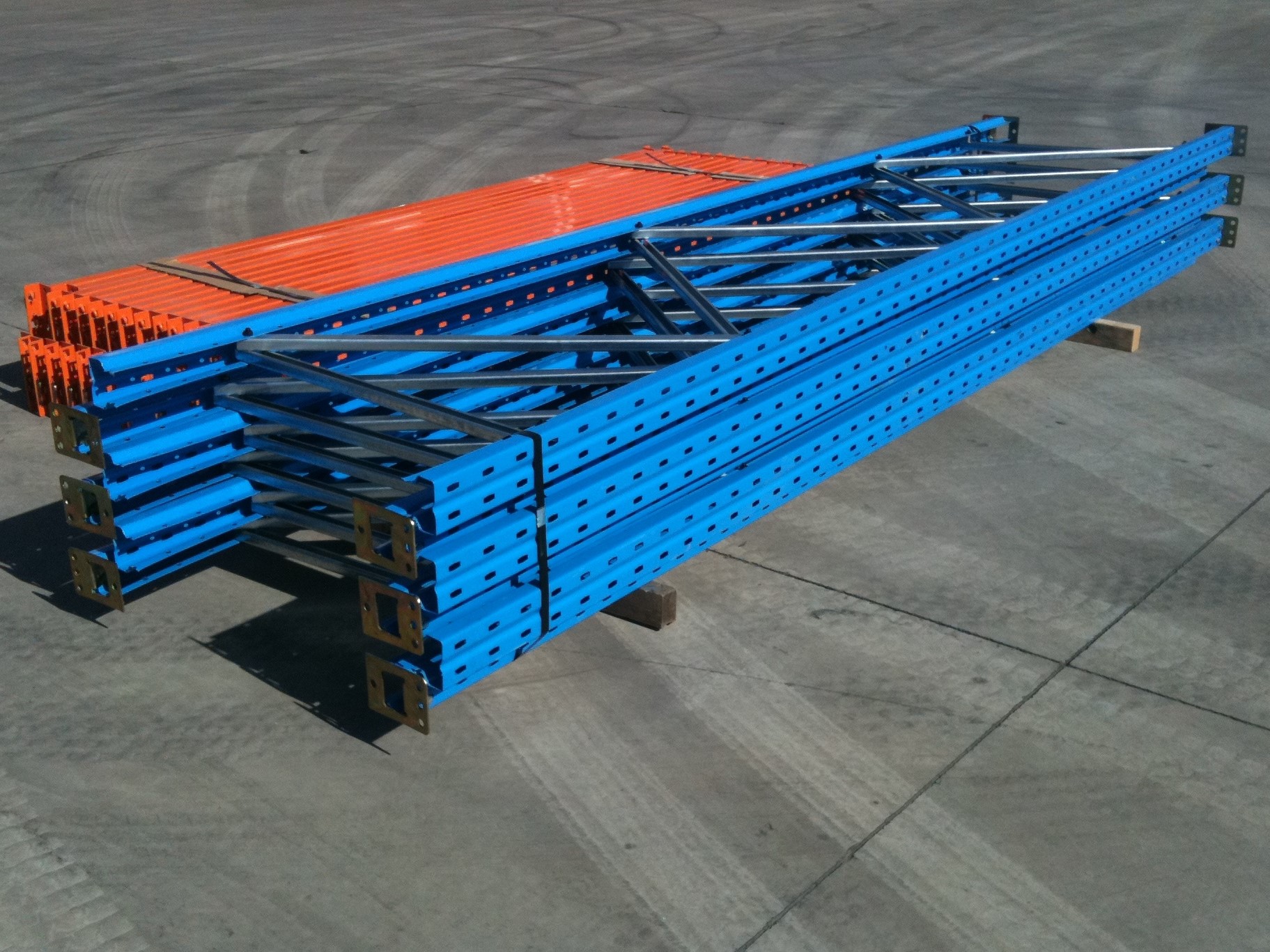

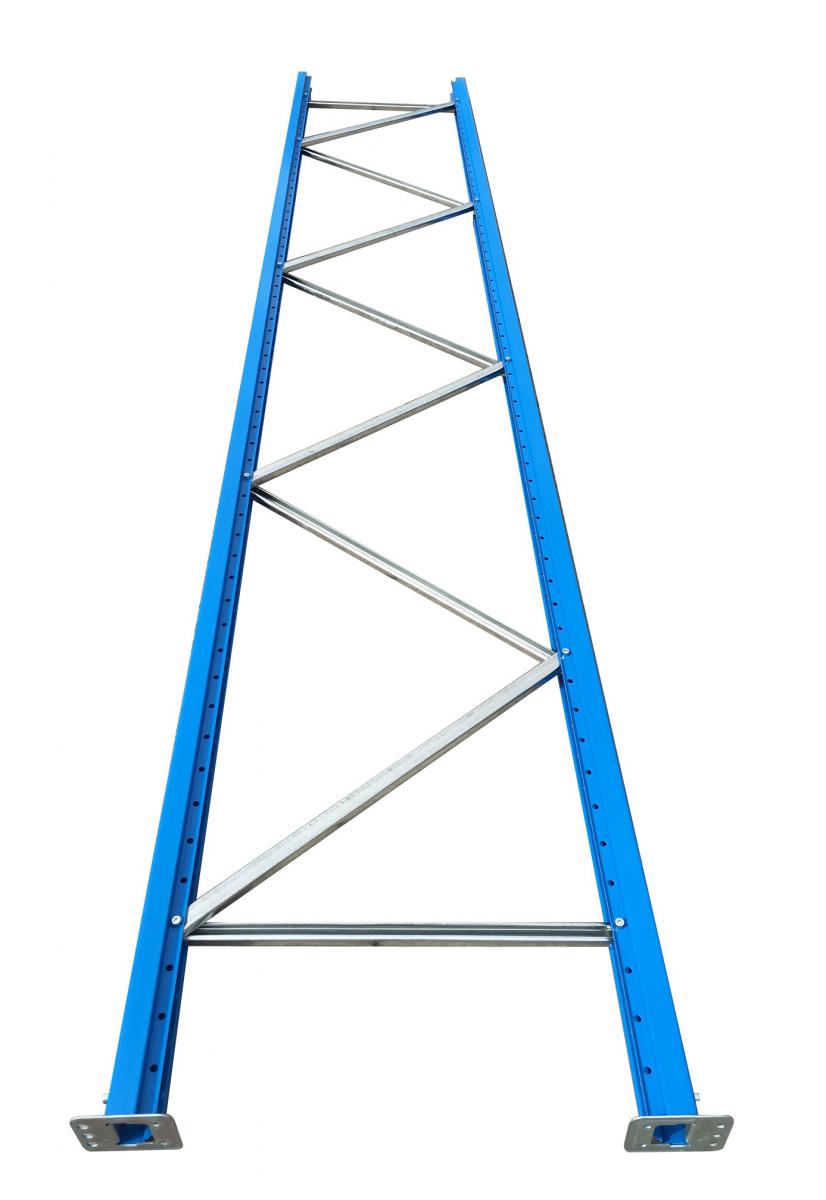

Pallet Racking Frame
|
NEW Superlock 76.2mm Pitch Pallet Racking Frames |
|||
|
? POWDER COATED BLUE OR PRE-GAL SILVER |
|||
|
Height |
Depth |
Capacity UDL |
? |
|
2438mm |
838mm |
8500kg |
? |
|
3048mm |
838mm |
8500kg |
? |
|
3658mm |
838mm |
8500kg |
? |
|
4267mm |
838mm |
8500kg |
? |
|
4877mm |
838mm |
8500kg |
? |
|
6096mm |
838mm |
10500kg |
? |
| 8536mm | 838mm | 12000kg | ? |
For Pricing & Quotation Please Call: 1300 725 335
?Notes:

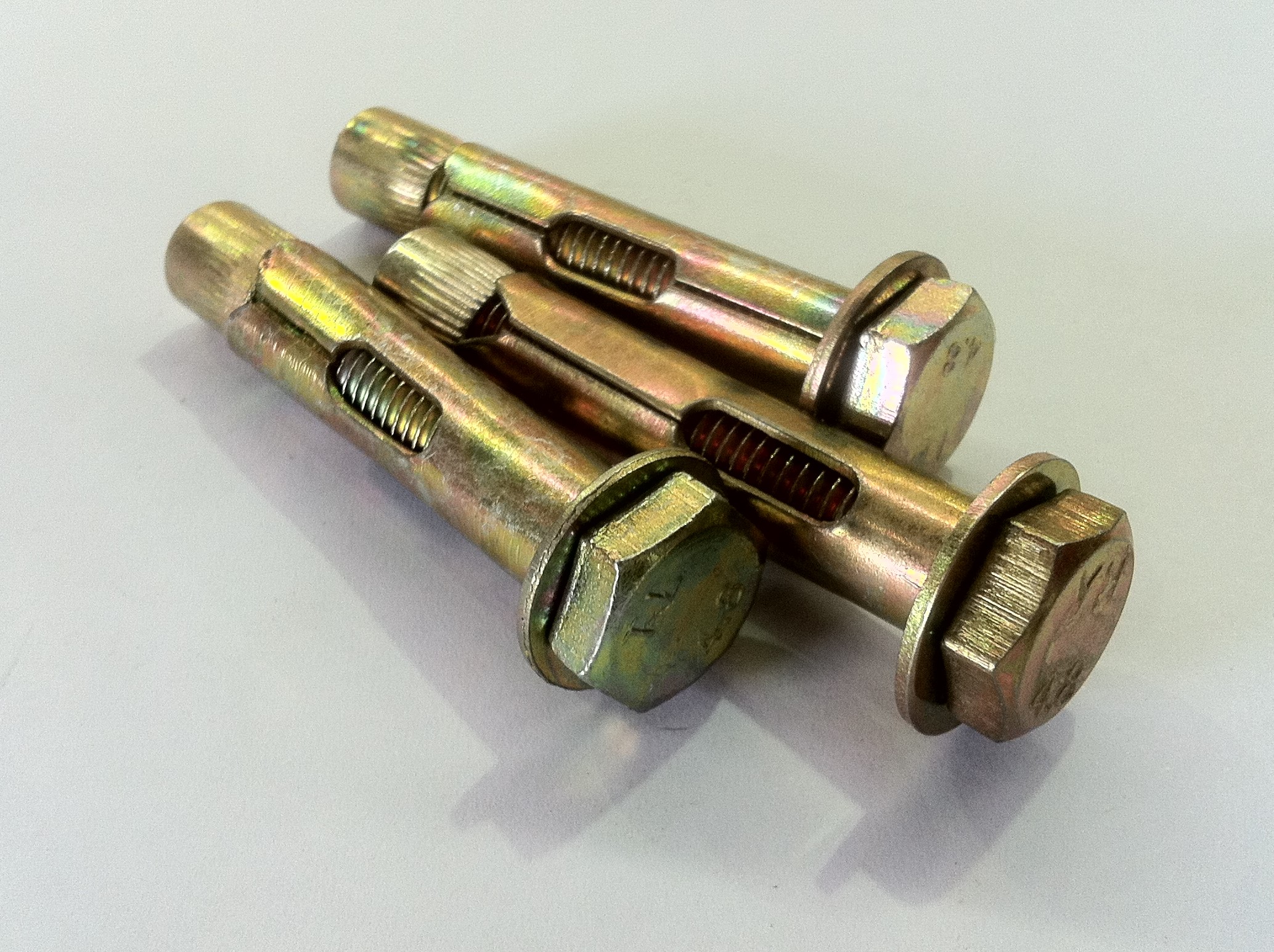

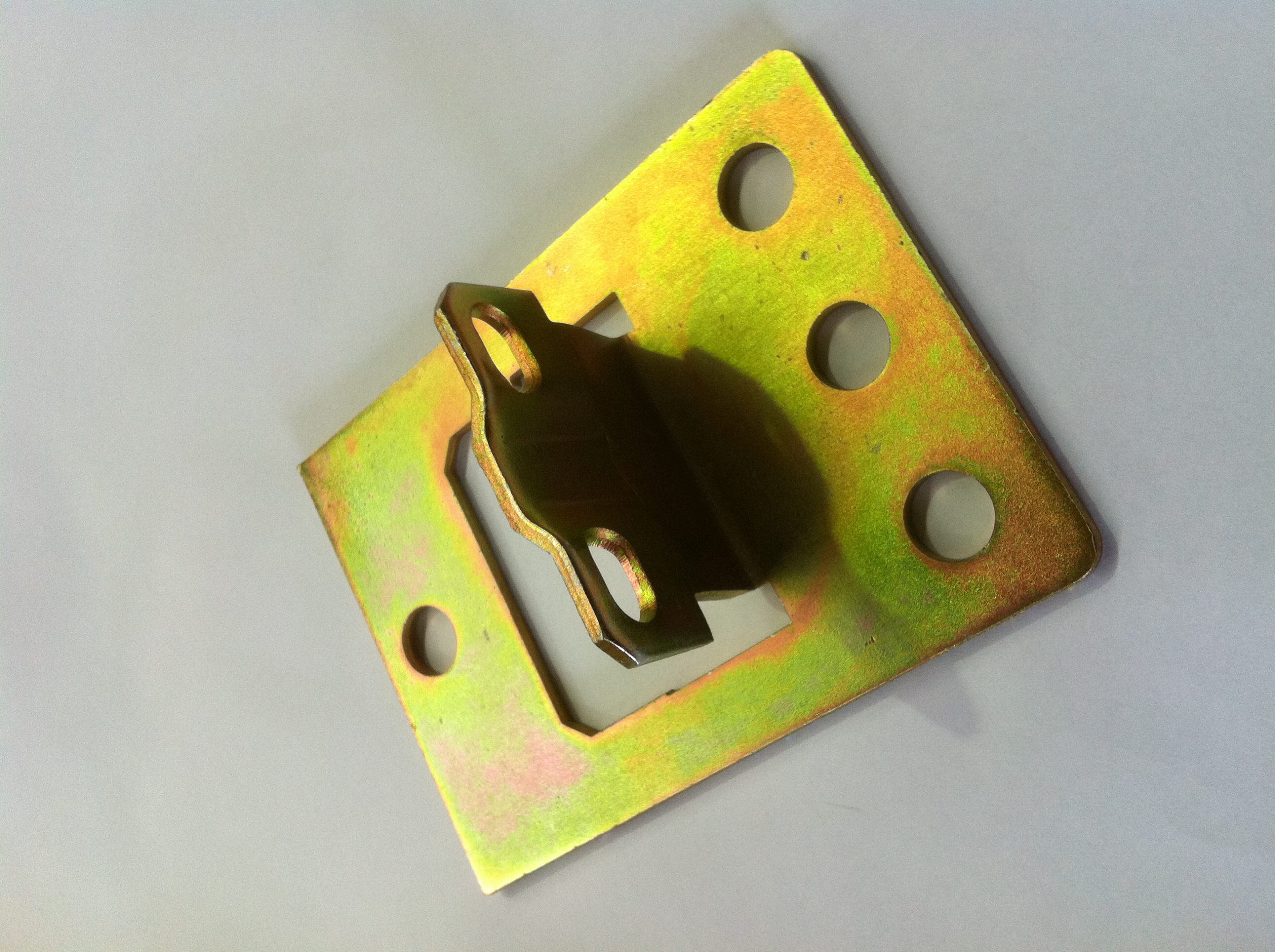

Each Frame Comes Assembled. Includes 2 x Uprights, 2 x Foot Plates, all Bracings and 4 x Dyna Bolts.
Frame capacity based on first beam level at 1219mm
*All above prices excluding GST and subject to change without notice.
?
[divider width=”100%”]
ASSEMBLY GUIDES
[featured_box img=”2485″ img_width=”46″ pos=”left”]
[button text=”Download” size=”large” expand=”0″ link=”http://www.dynamicracking.com.au/wp-content/uploads/Dynamic-Racking-technical-sheets-1.pdf” target=”_blank”]
[/featured_box]
